Marine Diagnostic Tools
















Diacom Marine diagnostic software


DIACOM Marine


MEFI troubleshooting article




DIACOM Marine
PC Software

For Windows 7, Vista & XP

Diacom Marine is a powerful Windows based diagnostic tool that is revolutionizing marine engine service.  With advanced engine control systems now standard on nearly all gasoline inboard and stern drive engines, you need a service tool that pinpoints problems quickly and accurately.

Diacom Marine unlocks the computing power of your notebook PC and provides state-of the- art features that simply leave other diagnostic tools in its wake.





Detailed Product Information

Marine Price List

Contact us for information

Part #94010

Mercruiser marine scan tool


        Detailed information and specifications

             Scan Tool Adapter Reference

        Version 6 software update available!


MerCruiser Scan Tool

Developed in conjunction with MerCruiser engineers, this self-contained diagnostic tool displays complete EFI system information allowing you to quickly pinpoint engine related problems. The tool performs a complete range of EFI system tests and also contains a built-in programmable fuel injector tester. This tool is the choice of MerCruiser and independent marine dealers worldwide.

Marine Price List

Contact us for information

Part #94050m



Mercruiser marine scan tool


        Detailed information and specifications

             TechMate Pro Adapter Reference

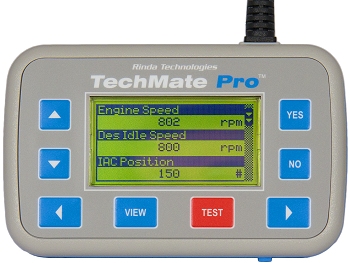

TechMate Pro Scan Tool

TechMate Pro is our new generation diagnostic scan tool built for professional marine service applications.

The TechMate Pro supports the widest range of marine engines in the industry. Built using the latest flash based microprocessor technology the tool features USB connetivity for easy updates, a high visibility multi-line graphic LCD display viewable in direct sunlight, SD card slot for system expansion, ergonomic soft-touch / anti-slip exterior for assured handling in marine environments, a water resistant key pad along with a host of other features.

Part #94070

CodeMate marine code reader


CodeMate
MEFI Code Reader

For GM-Delphi MEFI-1 thru MEFI-4

This pocket size tester serves as both an EFI Problem Indicator and a Spark Timing service tool. It is the perfect tool for low volume marine repair shops that troubleshoot a small number of EFI systems a year. CodeMate allows fault codes to be read and allows base spark advance to be set when used with a timing light.

For GM-Delphi MEFI-1 thru MEFI-4
systems only.  Not compatible with
MEFI-5 and above or 2001 and newer
MerCruiser PCM-555 / ECM-555.

Download Information & Pricing

Contact us for information

Part #94008


marine engine diagnostic adapter kit


Scan Tool Adapter Kit

Used in conjunction with the Mercruiser Scan Tool or Diacom Marine software, this adapter kit contains all the adapters needed for connection to the different modules supported by the Scan Tool and Diacom Software.  Included in the kit are: Thunderbolt V (1) adapter, 2.8L  4.3L 7.3L D-Tronic Diesel (2) and Mercury Outboard (2) High Performance adapters.

Download Information & Pricing

Contact us for information

Part #94035



marine engine sensor test leads


EFI Sensor
Test Lead Kit

This complete kit of adapters is designed to make the job of testing EFI sensors a whole lot easier!  Properly functioning sensors are absolutely essential on any EFI equipped engine.  When your diagnostic tool indicates a sensor problem, your next task is to verify the sensor's operation with a digital voltmeter or sensor tester. Most voltmeters and sensors testers are supplied with insulation piercing test probes which punch a hole in the sensor wire's insulation providing a path for moisture and corrosion.  These test adapters clip directly onto the sensor and provide easy access to the sensor's voltage supply and output terminals without piercing the wires!  Save time and frustration.  The kit includes adapters for MAP, IAC, CTS, MAT, TPS and Knock sensors.

Download Information & Pricing

Contact us for information

Part #94025

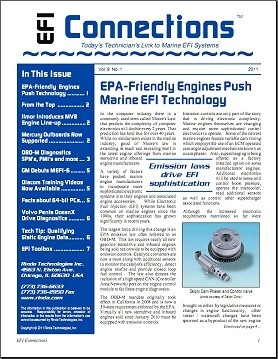

Read Our 2011
EFI Connections
newsletter!

Read about the latest systems from marine engine manufacturers and keep abreast of upcoming changes in engine technology.

In this issue:

- EPA-Friendly Engines Push Technology

- Ilmor's New MV8 Engine Line-Up

- Mercury Outboard Support Arrives

- OBD-M Diagnostic Primer

- GM Debuts MEFI-6

- Plus much more...

  Version 6.0 has been released!

               Click here for MerCruiser Version 6 info

                      Click here for TechMate Version 6 info

         Adobe Acrobat pdf format   Scan Tool Update Installation Guide!


Scan Tool
Software Update Kits

Be sure your diagnostic tools are equipped with the latest software.  Version 6.0 software has been released for both the MerCruiser and TechMate scan tools.  The software provides many new features that will assist you in your diagnostic work.  If you are not sure which version of software is currently running in your scan tool, you can find out by observing the tool's display screen when it is initially powered on. A new revision of Diacom plus software is also available which supports new electronic systems released by MerCruiser and other marine engine manufacturers. Please contact us for more information.

Download Information & Pricing

Contact us for information
