Products for Hyster / Yale Service Technicians

	Diacom Industrial Hyster / Yale PC Software Save hours in diagnostic time with this sophisticated diagnostic software system. Used in conjunction with a notebook PC, Diacom taps into the engine's on-board computer allowing a technician to quickly zero in on intermittent problems and malfunctions. Diacom displays over 30 engine parameters simultaneously allowing you to get the "big picture" during your diagnostic session. Diacom also records and graphs data from all accessible EFI system sensors and controls to help you zero in on intermittent problems. This is the ultimate marine EFI analysis tool! This is the ultimate Hyster and Yale EFI analysis tool! Supports 2.2L, 3.0L and 4.3L Hyster gasoline EFI engines. Request Information by mail Download Information & Pricing Part # 95010
	TechMate Industrial Hyster / Yale Scan Tool This self-contained, hand-held diagnostic scan tool displays complete Hyster EFI system information to quickly perform component level diagnosis. TechMate displays live sensor readings, extracts ECM fault codes, and provides fault code explanations. Its built-in port fuel injector tester performs both single pulse and multi-pulse tests to locate multiport injector problems. TechMate also allows base spark advance to be set when used with a timing light. The tool is supplied with a deluxe padded storage case. Request Information by mail Download Information & Pricing Part # 95050H
	CodeMate - EFI Code Reader This pocket size tester serves as both an EFI Problem Indicator and a Spark Timing service tool. It is the perfect tool for low volume marine repair shops that troubleshoot a small number of EFI systems a year. This tool is the minimum required service tool needed to perform GM marine EFI diagnostic procedures. CodeMate allows fault codes to be read and allows base spark advance to be set when used with a timing light. Request Information by mail Download Information & Pricing Part # 94008
	Hyster / Yale 3.0L Adapter This adapter allow the TechMate scan tool to be connected to Hyster's new 3.0L EFI engine. Unlike the 2.2L and 4.3L EFI engines, the 3.0L is equipped with a new 10 pin diagnostic data connector. This new data connector eliminates the need for a separate 12 volt battery connection to power the TechMate scan tool. If you plan on servicing the 3.0L EFI engine, be sure to specify this optional adapter when ordering the TechMate tool. Request Information by mail Download Information & Pricing Part # 94005

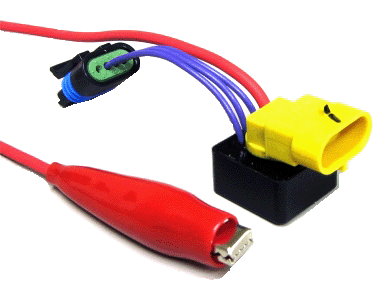

	Engine Timing Adapter Designed for Hyster and Yale fuel injected fork trucks equipped with 1996-97 GM 4.3L fuel injected engines. This adapter is a required dealership service tool and is needed to set base ignition timing. The adapter plugs into the engine's distributor and provides a stable timing signal during the adjustment procedure. Please note that this adapter must be used with a timing light. The adapter is supplied with an instruction sheet. Download Information & Pricing Request Information by mail Part # 95009
	EFI Sensor Test Lead Kit This complete kit of adapters is designed to make the job of testing EFI sensors a whole lot easier! Properly functioning sensors are absolutely essential on any EFI equipped engine. When your diagnostic tool indicates a sensor problem, your next task is to verify the sensor's operation with a digital voltmeter or sensor tester. Most voltmeters and sensors testers are supplied with insulation piercing test probes which punch a hole in the sensor wire's insulation providing a path for moisture and corrosion. These test adapters clip directly onto the sensor and provide easy access to the sensor's voltage supply and output terminals without piercing the wires! Save time and frustration. The kit includes adapters for MAP, IAC, CTS, MAT, TPS and Knock sensors. Download Information & Pricing Request Information by mail Part # 94025
	Software Updates Be sure your diagnostic tools are equipped with the latest software. Version 5.0 software has been released for both the Hyster and Yale TechMate scan tools. The software provides many new features that will assist you in your diagnostic work. If you are not sure which version of software is currently running in your scan tool, you can find out by observing the tool's display screen when it is initially powered on. A new revision of Diacom plus software is also available which supports new electronic systems released by Hyster and Yale. Please contact us for more information. Download Information & Pricing Request Information by mail
