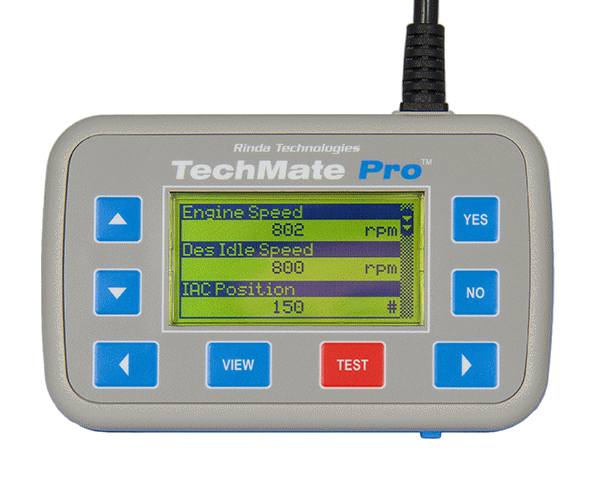

TechMate Scan Tool

This self-contained, hand-held diagnostic scan tool displays complete GM Ram Jet fuel injection system information allowing you to perform component level engine diagnosis like the pros. TechMate allows you to:

• Display live sensor readings
• View spark advance and fueling information
• Extract and erase ECM fault codes
• View fault code explanations
• Read engine operating hours
• Monitor system status indicators
• Scan ECM inputs and activate outputs
• Set base engine timing
• Perform fuel injector leak-down tests

Its built-in port fuel injector tester performs both single pulse and multi-pulse tests allowing you to locate  injector problems.  TechMate also allows base spark advance to be set when used with a timing light.  The tool is supplied in a deluxe padded storage case.

Part # 94040

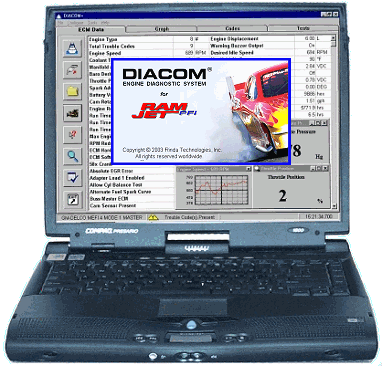

Diacom RamJet - PC Software

Save hours in diagnostic time with this sophisticated diagnostic software system. Used in conjunction with your PC, Diacom taps into the Ram Jet's engine control module allowing you to view and record engine performance information as well as quickly zero in on intermittent problems and malfunctions.

Diacom displays over 30 engine parameters simultaneously allowing you to get the "big picture" during your diagnostic session or performance run. Diacom also records and graphs data from all accessible Ram Jet sensors and controls.

This is the ultimate Ram Jet analysis tool!

Part # 94010R

IAC Signal Tester

Diagnosing Idle Air Control problems on EFI engines can be a real challenge without the proper test equipment. This electronic diagnostic tester is used to check the condition of the ECM's Idle Air Control electronic driver circuit. The ECM's driver circuit controls the movement of the IAC motor's air bypass valve and thereby allows the ECM to regulate idle speed. This tester provides a visual display of the ECM's two IAC driver signals and indicates both the polarity and switching activity of the IAC signals. This is a real time saving device when troubleshooting IAC problems.

Part # 94016

EFI Sensor Test Lead Kit

This complete kit of adapters is designed to make the job of testing EFI sensors a whole lot easier!  Properly functioning sensors are absolutely essential on any EFI equipped engine.  When your diagnostic tool indicates a sensor problem, your next task is to verify the sensor's operation with a digital voltmeter or sensor tester. Most voltmeters and sensors testers are supplied with insulation piercing test probes which punch a hole in the sensor wire's insulation providing a path for moisture and corrosion.  These test adapters clip directly onto the sensor and provide easy access to the sensor's voltage supply and output terminals without piercing the wires!  Save time and frustration.  The kit includes adapters for MAP, IAC, CTS, MAT, TPS and Knock sensors.

Part # 94025
